IGNIJET MAX POWER

Programmable unit for injection and ignition control

PC computer can program unit. Connection is by COM port. PC software for programming units IGNIJET MAX POWER.EXE (v58) is part of delivery. Software can set advance, injection time and many other functions.
Unit was produced for many types of bikes (see list in software).
Units contain no immobilizer. There are 4 injection maps. One is for injection time of cylinder 1,4 and the second for cylinders 2,3. Third map is for secondary injectors. It sets relation for injection time of primary and secondary injectors. These injection maps have 15 colons (rpm) and 10 rows (TPS). Fourth map is for setting of injection time as function of IAP. It has 15 colons (rpm) and 10 rows (IAP).
Unit has racing utilities: Two step revolution limiter, adjustable pilot light output, clutch master and N2O controller. It has one servo controller.

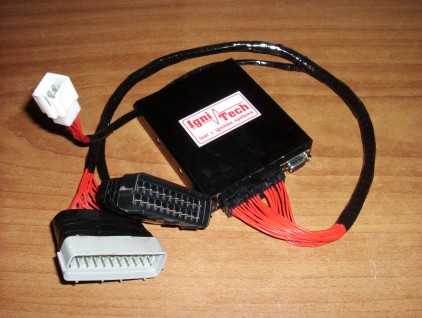

Unit was produced with 36-pin TYCO connector. (It is he same as is on Ignijet 04). Connection to particular bike is by reduction cable or connector on bike is replaced.
Price for basic version is 458 EUR
Price for full version is 1007 EUR


Detailed decription IGNIJET MAX POWER.
