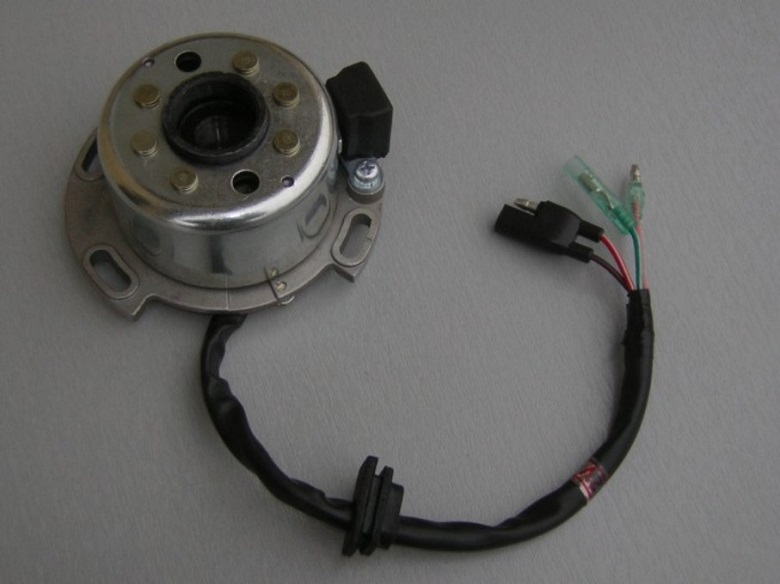

Magneto LFS

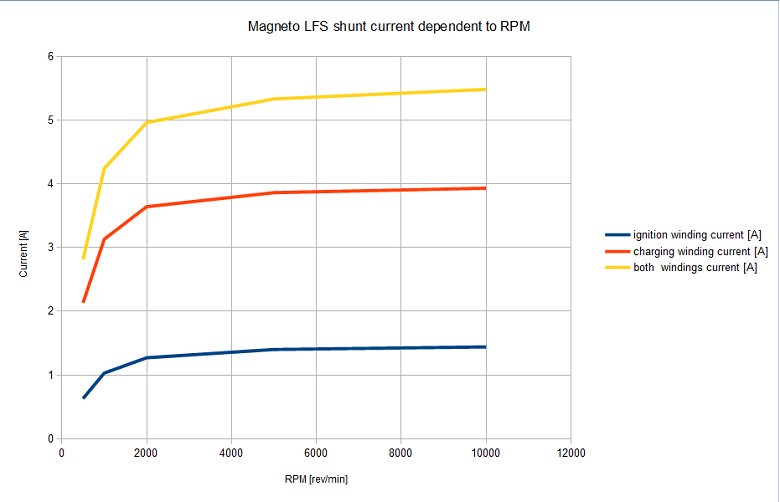

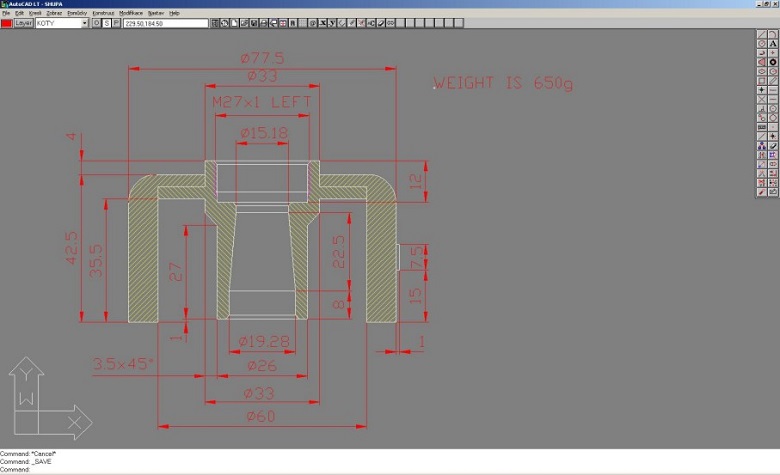

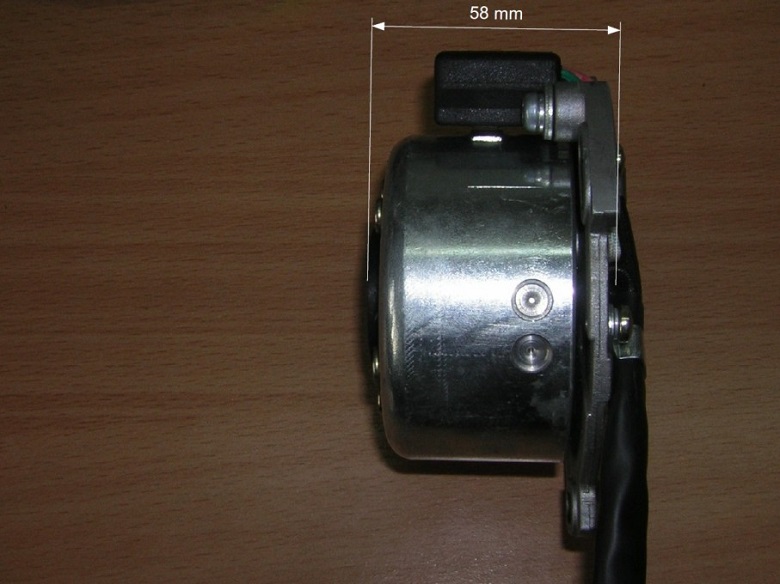

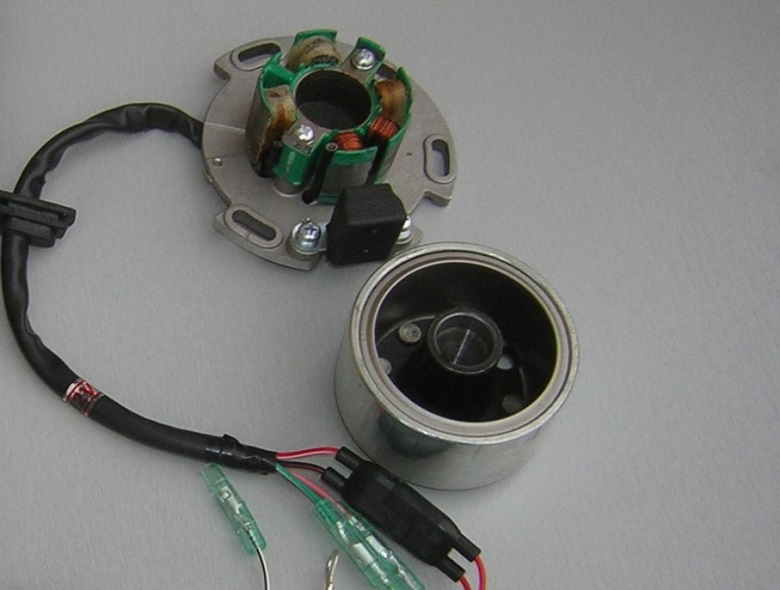

Complet magneto LFS diameter 75 mm. There are two windings. One has current capacity 1 A. This winding is suitable for supplying of ignition. Second winding has current capacity 4 A. This winding is suitable for lights and for battery charging. Both windings has two leads and are isolate from ground. Weight of rotor is 665 g.
Suitable rectifier-regulator is RCH8Z. Magneto is suitable for selected Ignitech units for use on single-cylinder bikes. Usage consult with our technicians.
